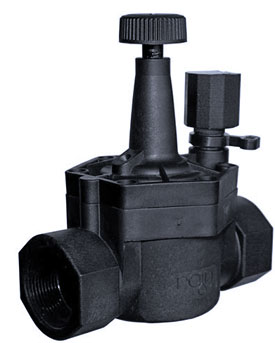

Electric Valves: RN 160 PLUS

RN 160 Pluse Specification

Technical Features:

  • PA 6 30% fiberglass
  • Self cleaning stainless-steel metering pin
  • Stainless-steel diaphragm differential spring for smooth closing
  • Flow control
  • Solenoid certificate CE, IP 68 9 PN12 tested piece by piece at 14 bar
  • Bleed handle for manual opening with internal bleed
  • Energy efficient solenoid 0.2 amp, 4.8 VAC Operating Conditions
  • Pressure: min 1.0 bar - max 12.0 bar
  • Temperature: +4░C / 70░C

Available Versions:
  • Standard solenoid: 24 VAC
  • Available solenoid 12 VDC; 24 VDC; 110 VAC; 9 VDC Latching
  • On request are also available NPT thread versions: 1"1/2 NPT W/FC or 2" NPT W/FC
