Automatic Disc Filters

Specification

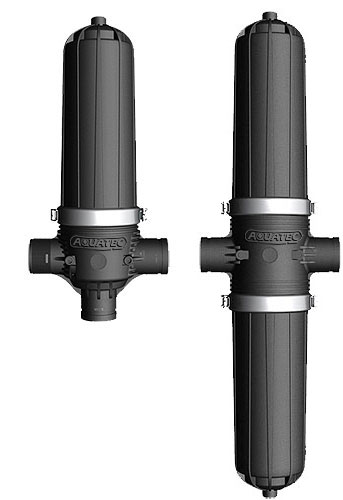

AUTOMATIC BACKFLUSH FILTERS
AQUATEC Automatic disc filter allows to obtain the maximum quality in filtration and minimum energy consumption. Our filter minimum the water lose. reduce system maintenance costs , the core technology is high-precision groove type disc and high quality high performanceácartidge.

TECHNOLOGY:

  • Better filtration reliability: Disc Type Filtration
    Elaborate design of inner construction & disc cartridge, ensured the impurities that might plug the system to be stopped.
  • Better water saving and reduce system maintenance cost: Centrifugal Filtration
    The helix create centrifugal action, big impurities flow away cartridge, optimize the filtration performance and reduce backwash frequency and maintenance and water lose, get the best filtration result
  • Better automatic self-cleaning result: Accurate Small Nozzle Design
    Numerous small nozzle in cartridge, create spiral high speed water stream, which get efficient cleaning of discs; Low flow demanding, ensure the flow rate of whole system more stable, and get efficient self-cleaning
  • Multiple precision of disc available: Good for different working conditions

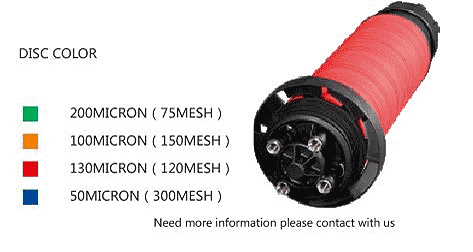

    Color codedá discá precision in 200 micron, 130 micron, 100 micron, 50 micron
  • Molding products, with very little dimension difference
    Different connection available for fast assembling, easy for installation and change
